特 點 Features

● 低漏電流，低電壓降（正常運行時，漏電流幾到幾十mA級），

Low leakage current, low voltage drop (in normal operation, the leakage current is several to tens mA level),

● 專為屏蔽機柜設計，并有良好接地的屏蔽機柜，

It is specially designed for shielded cabinet with good grounding,

● 體積小，屏蔽效能滿足B級和C級屏蔽機柜的要求。

Small size, shielding effectiveness to meet the requirements of B and C shielding cabinet.

應 用 Application

● 屏蔽機柜、大容量的工業電氣設備，如變流變頻裝置，凈化電源屏蔽房及電子方艙等。

Shielding cabinet, large capacity industrial electrical equipment, such as variable frequency device, purified power supply shielding room and electronic shelter, etc.

性能指標 Characteristcs

產品型號表 Filter Table

注：零地電壓為0V Note: N-G voltage is 0V

外形尺寸圖 Outline Drawing : mm

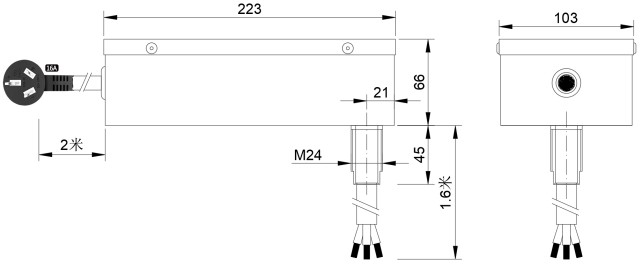

Fig.1

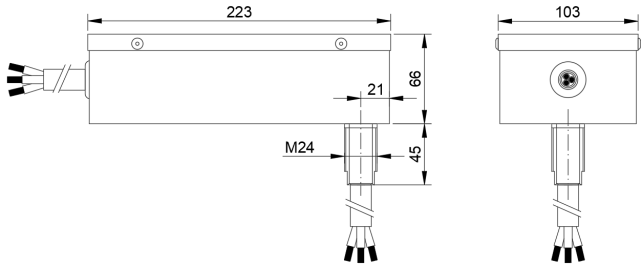

Fig.2

Fig.3
