特點 Features

● 接線柱,可以配合4mm香蕉插座。Terminal post, can cooperate with 4mm banana socket.

● 新型穿墻接線端子、線對線插拔式。New wall wiring terminal, line to line insertion and pull type.

●金屬殼體采用特殊的不銹鋼材質，機械強度高，耐腐蝕性強。

The metal shell is made of special stainless steel with high mechanical strength and strong corrosion resistance.

應用Application

● 軍標測試實驗室、電波暗室等設施的專用配套，能有效的抑制電源線傳導干擾。

Military standard test laboratory, radio wave dark room and other facilities can effectively inhibit the conduction

interference of power line.

● EMC實驗室 CE102 10KHz~10MHz電源線傳導發(fā)射測試。

EMC Laboratory CE10210KHz ~ 10 MHz power line conduction transmission test.

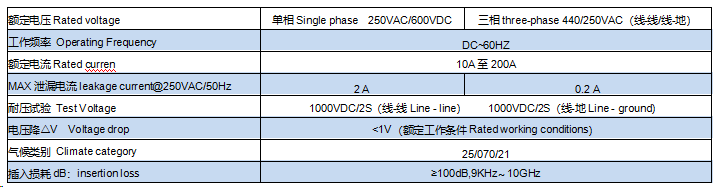

性能指標 Characteristcs注：零地電壓為0V Note: N-G voltage is 0V

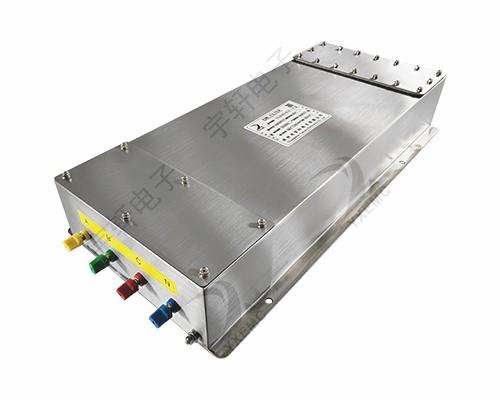

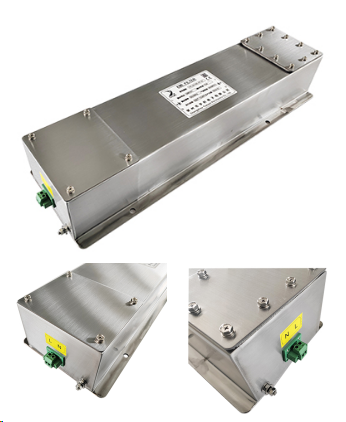

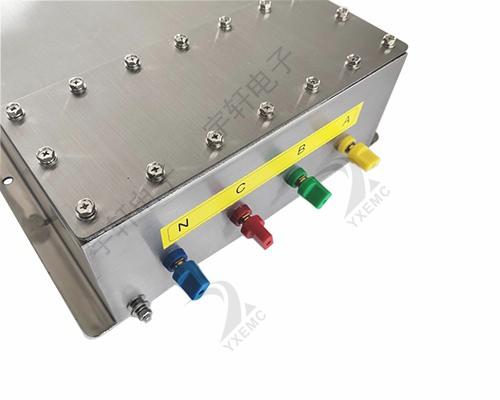

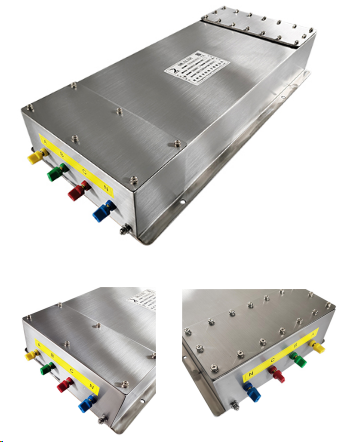

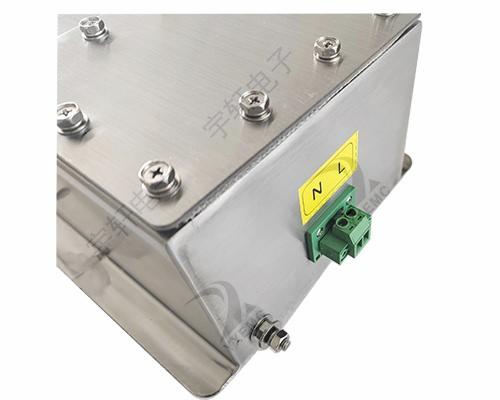

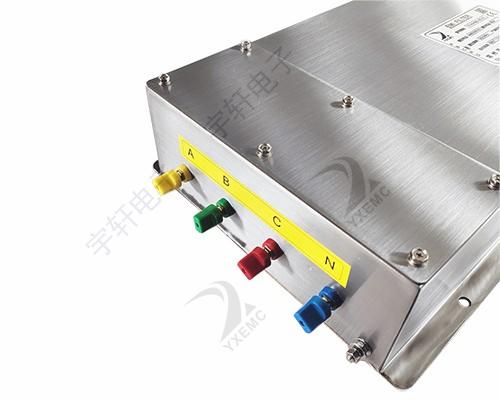

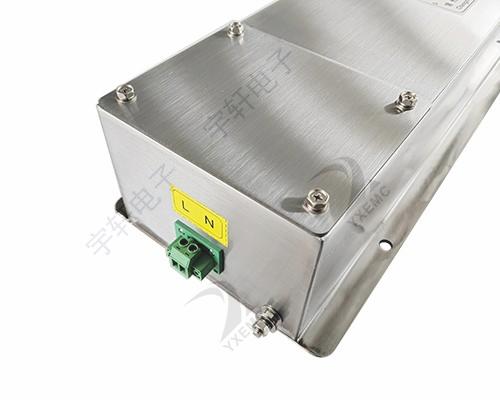

產(chǎn)品照片 product photograph：

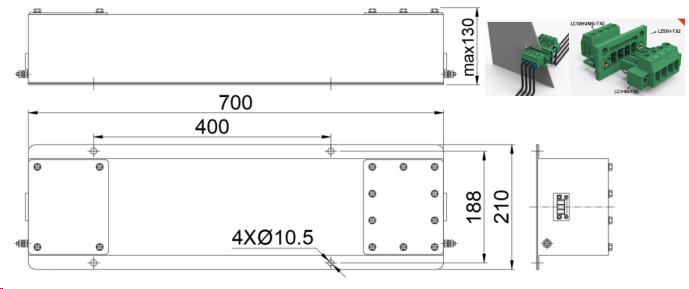

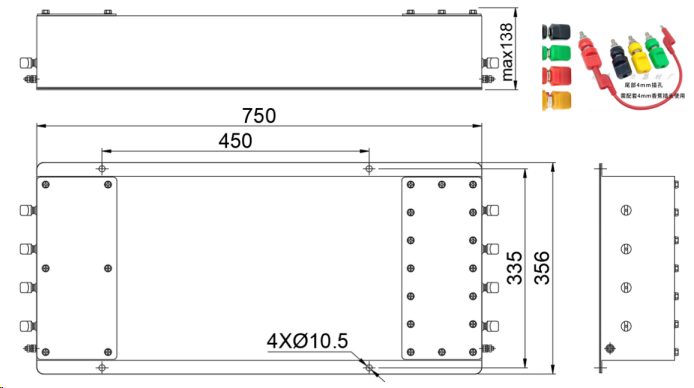

外形尺寸圖 Outline Drawing : mm

單相：16A

三相：63A
